Use Private Island and Betsy for Real Time Inferencing

Overview

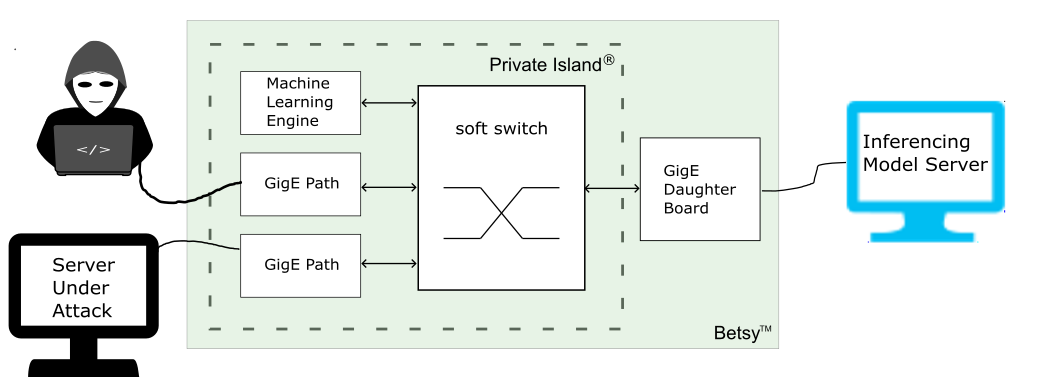

This article summarizes the use of the Private Island ^® open source Verilog stack and a Betsy™ maker board to implement real-time, network-based inferencing utilizing a networked model server (see figure below).

The applications are research, experimentation, and real-time deployment to thwart intrusion attacks and spying on small business and home networks.

This article describes the use of the OpenVino toolkit and model server using a KServe REST API. However, other model servers can also be supported.

Development Flow

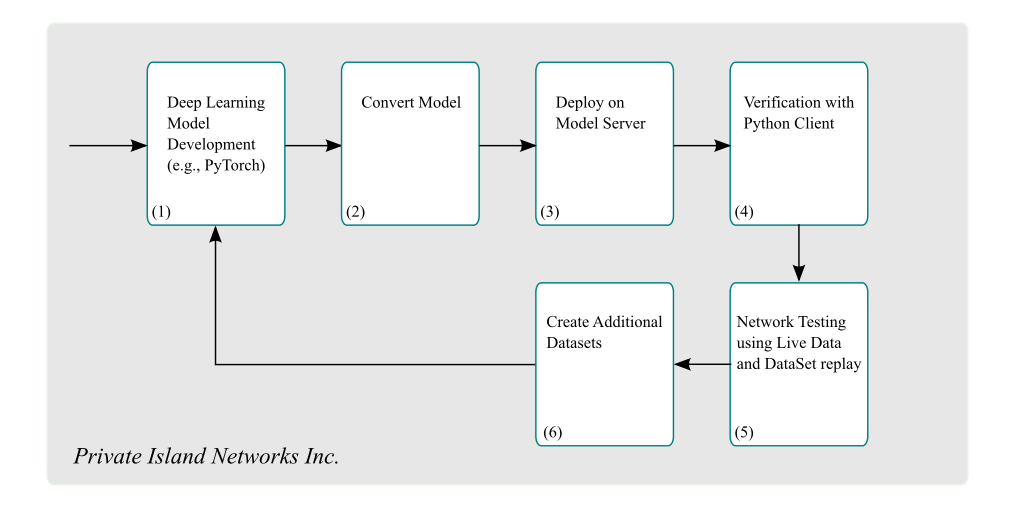

The figure below shows steps for model development, deployment, and testing.

Development & Deployment Flow:

1. Develop a Deep Learning Model using PyTorch. Start with simple but meaningful datasets.
2. Convert Deep Learning Model to a representation that can be served
3. Deploy Model on Server that supports a real-time inferencing API
4. Use a Python Client to verify that Model Server is performing as expected.
5. Customize Private Island Machine Learning Framework as needed to receive, process, and transmit input vectors according to model requirements
6. Iterate by creating additional datasets and Deep Learning model network topologies.

Creating a Deep Learning Model

We currently use Pytorch for development of Deep Learning (neural network) models. We make use of Pytorch inside a Python virtual environment:

$ python3 -m venv ml_venv

$ source ml_venv/bin/activate
$ pip install numpy
$ pip install torch
Collecting torch
...

(ml_venv)$ python3 -c "import torch; print(torch.__version__)"
2.13.0+cu130

An excellent PyTorch primer for the development from scratch of a basic Multi-Layer Perceptron is is provided at Building a Simple MLP from Scratch Using PyTorch. Don't forget to install the rest of the Python libraries you'll need in within the virtual environment you previously created (as needed).

Ultimately, we want to create a PyTorch model that can be converted to an OpenVino Intermediate Representation (IR). Therefore, we'll rewrite the initial example using higher layer PyTorch constructs, so OpenVino can recognize and convert our model.

Both of the aforementioned Python scripts can be found on our Git Server.

Convert Deep Learning Model

In order to serve our MLP model on our model server, we must first convert it into an OpenVino Intermediate Representation (IR).

These steps are provided in mlp_2.py and are shown below. For further information on the OV functions, refer to the OV Python API

    ov_input=(ov.PartialShape([1, 2]), ov.Type.f32)
    ov_model = ov.convert_model(model, input=ov_input)
    compiled_model = ov.compile_model(ov_model, "AUTO")
    ov.save_model(ov_model,'./mlp.xml')

Deploy on Model Server

The OpenVino Model Server (OVMS) is hosted on Github.

The model server is built from source on an Ubuntu 24.04 PC in order to better understand the flow of code and capabilities of the server. Refer to the OpenVINO™ Model Server Developer Guide and Building OpenVino from source

We chose the "Building Binary Package" option on Ubuntu 24.04 Linux:

$ make targz_package PYTHON_DISABLE=1
$ tar xvzf dist/ubuntu24/ovms.tar.gz

Set up the necessary environment variables:

export LD_LIBRARY_PATH=$BUILD_DIR/ovms/lib
export PATH=$PATH:$BUILD_DIR/ovms/bin

Set up our model folder:

$ tree models/mlp
models/mlp
└── 1
    ├── mlp.bin
    └── mlp.xml

To serve our MLP model with OVM:

ovms --log_level DEBUG --rest_port 9000 --rest_bind_address 127.0.0.1 --model_name mlp --model_path models/mlp
...
[serving][info][model.cpp:97] Updated default version for model: mlp, to: 1
[serving][info][servablemanagermodule.cpp:55] ServableManagerModule started
[modelmanager][info][modelmanager.cpp:1048] Started model manager thread
[modelmanager][info][modelmanager.cpp:1067] Started cleaner thread

Verification with Python Client

Our client to perform HTTP-based inference is based off the Triton Inference Server Python client and also the OVMS HTTP sample clients: .

As previously mentioned, we utilize the KServe API to interface with OVMS.

Network Testing

The Private Island project supports a Machine Learning Framework to create and transmit input vectors in real time to a remote inference server.

An example will be added here explaining the customizations required for an example application.

Create Additional Datasets

To Be Added
